Materials Performance Group
Torsion and Tension Behavior
Tension and Torsion Behavior of Eutectic Lead-Tin Solder at Room Temperature

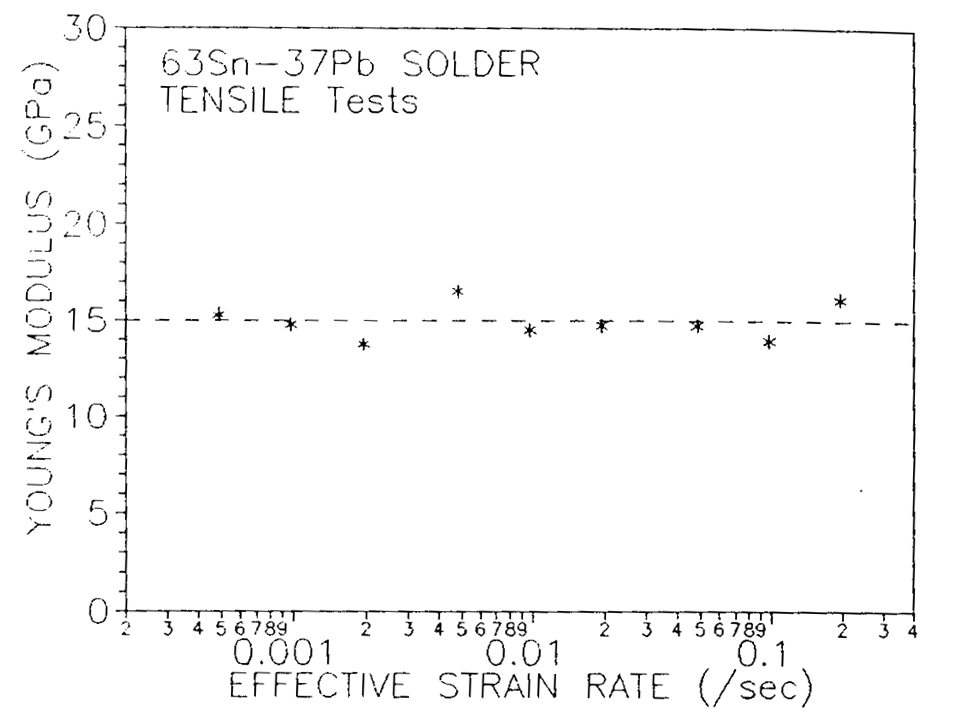

Young's modulus of the 63Sn-37Pb test material as a function of effective strain rate.

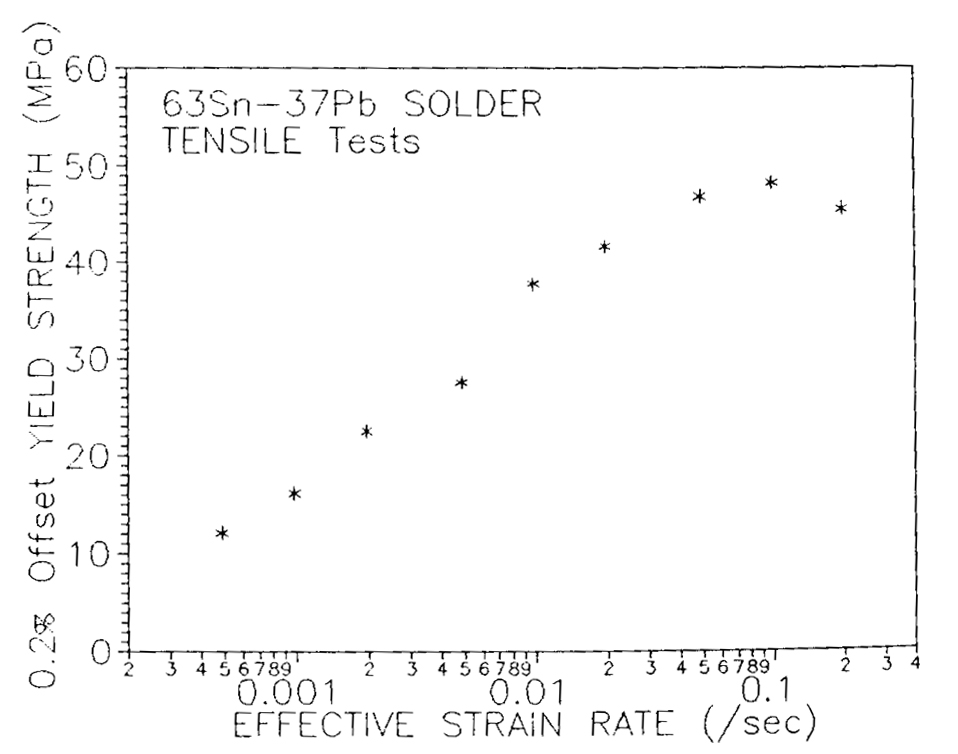

Tensile yield strength of the 63Sn-37Pb test material as a function of effective strain rate.

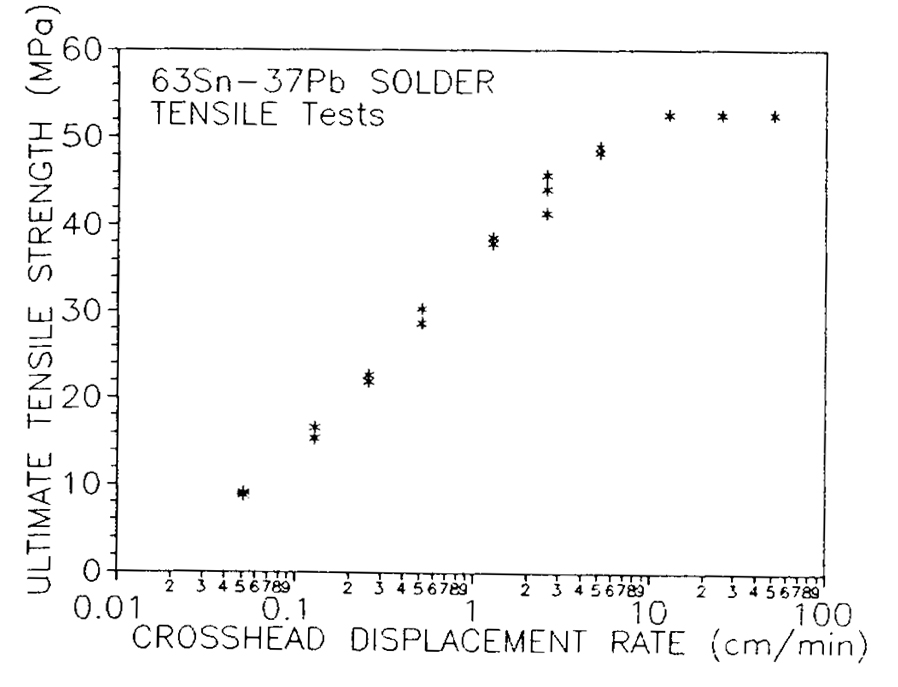

Ultimate tensile strength of the 63Sn-37Pb test material as a function of test machine crosshead displacement rate.

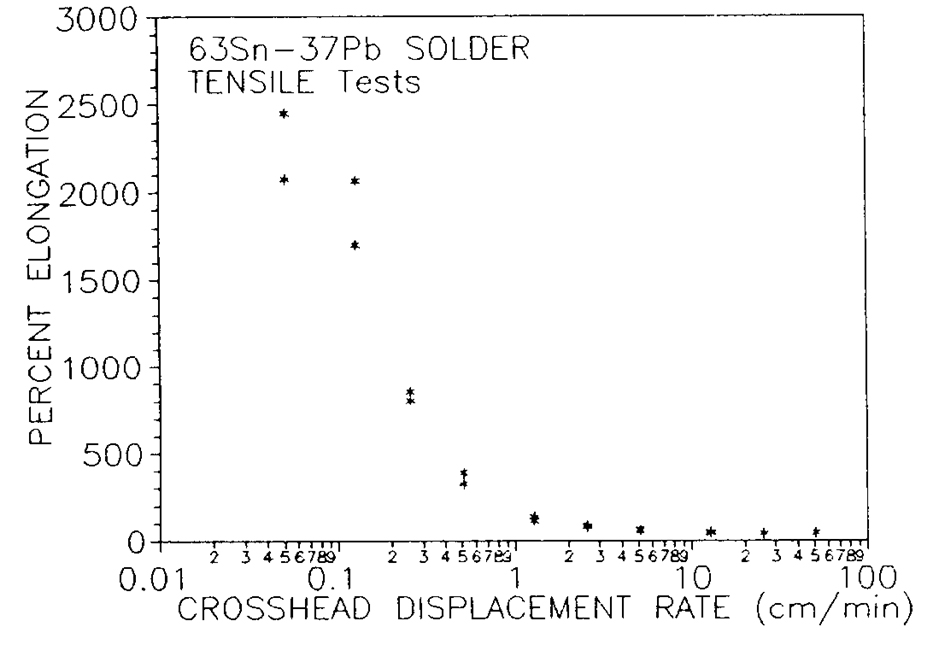

Percent elongation in tension of the 63Sn-37Pb test material as a function of test machine crosshead displacement rate.

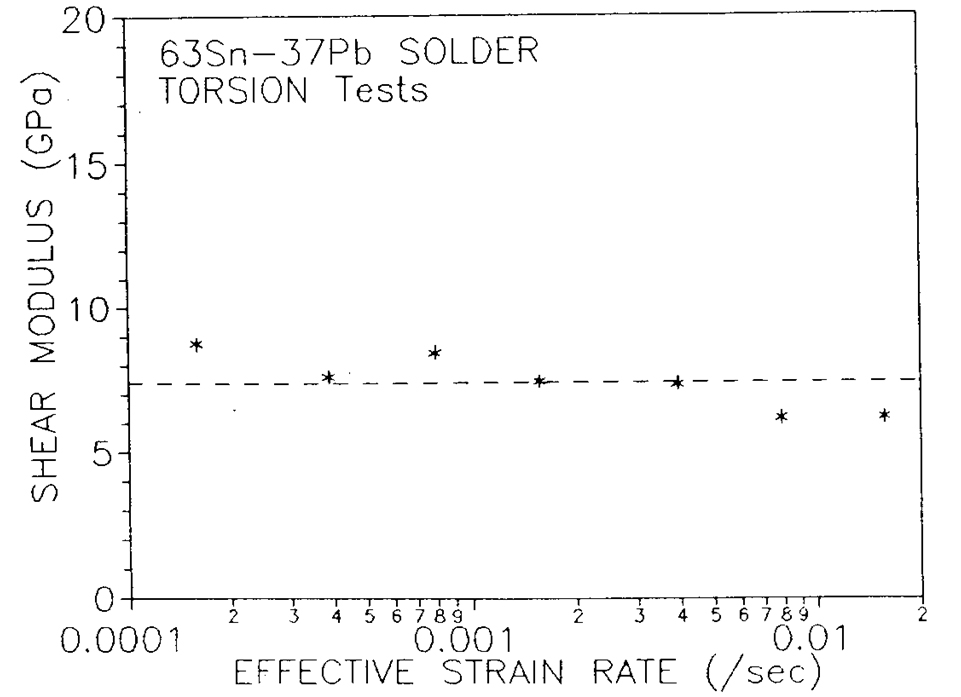

Shear modulus of the 63Sn-37Pb test material as a function of effective strain rate.

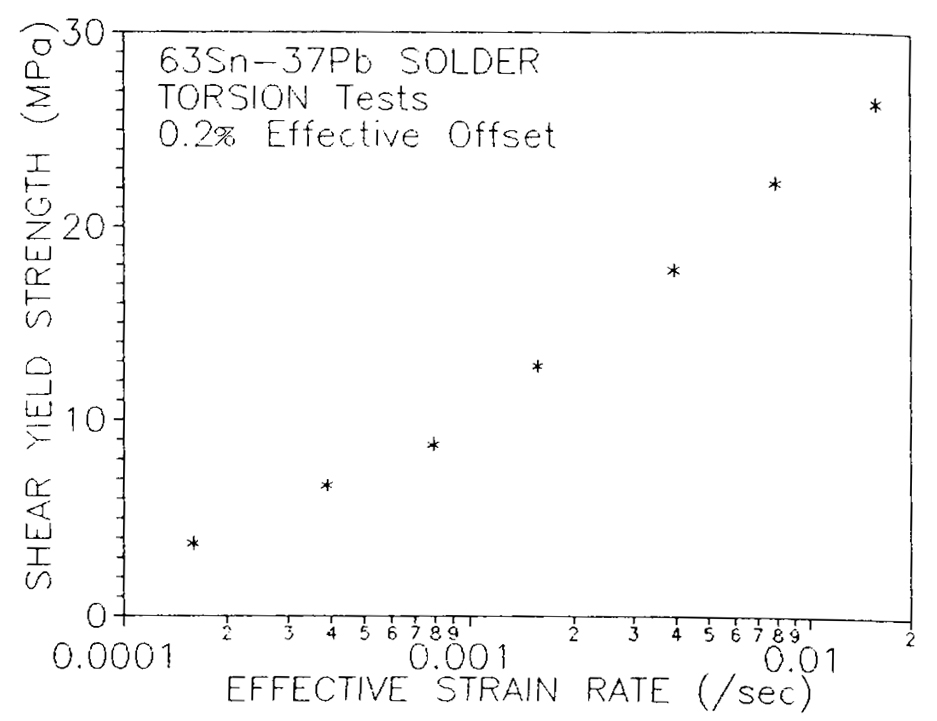

Shear yield strength of the 63Sn-37Pb test material as a function of effective strain rate.
Ultimate shear strength of the 63Sn-37Pb test material as a function of test machine twist rate.

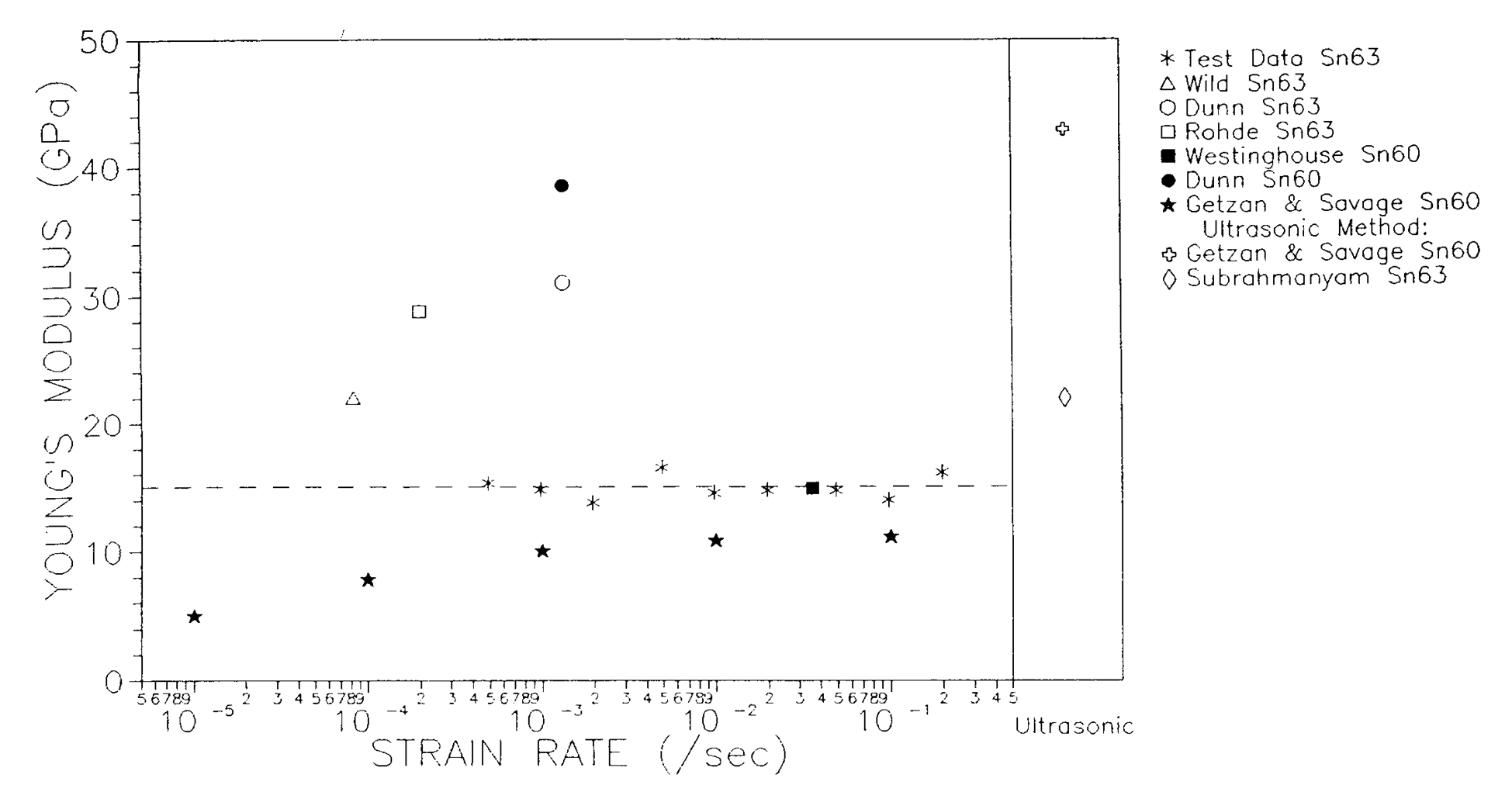

Comparison of Young's modulus data for 63Sn-37Pb and 60Sn-40Pb solder as reported in the literature.

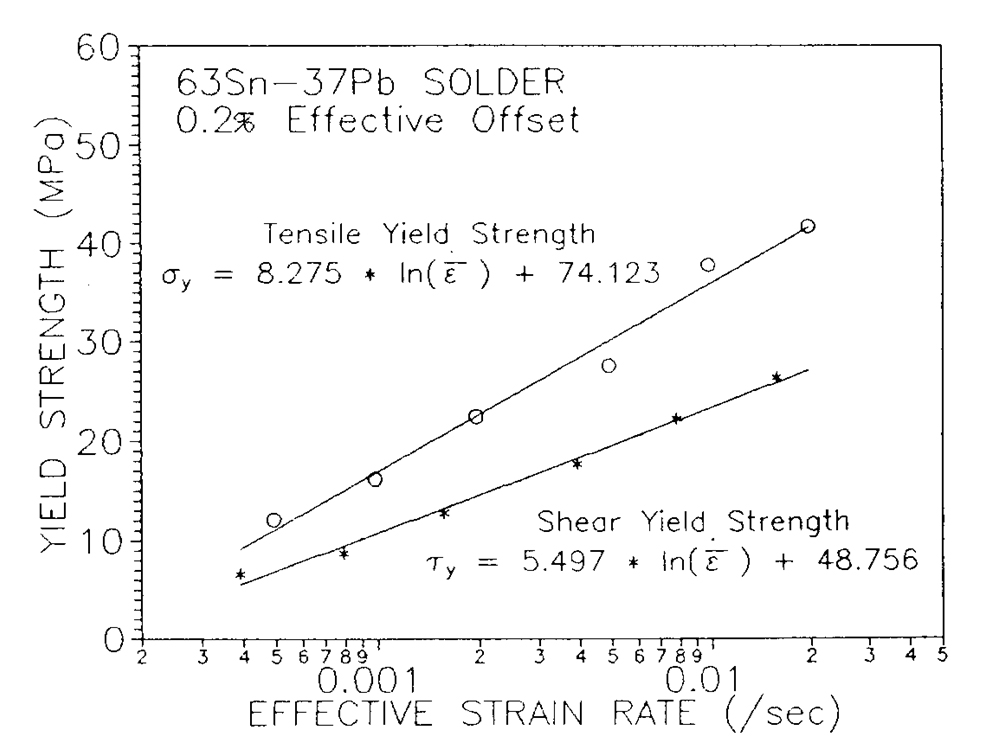

Tensile and shear yield strength data as a function of effective strain rate with corresponding logarithmic fits of the data.

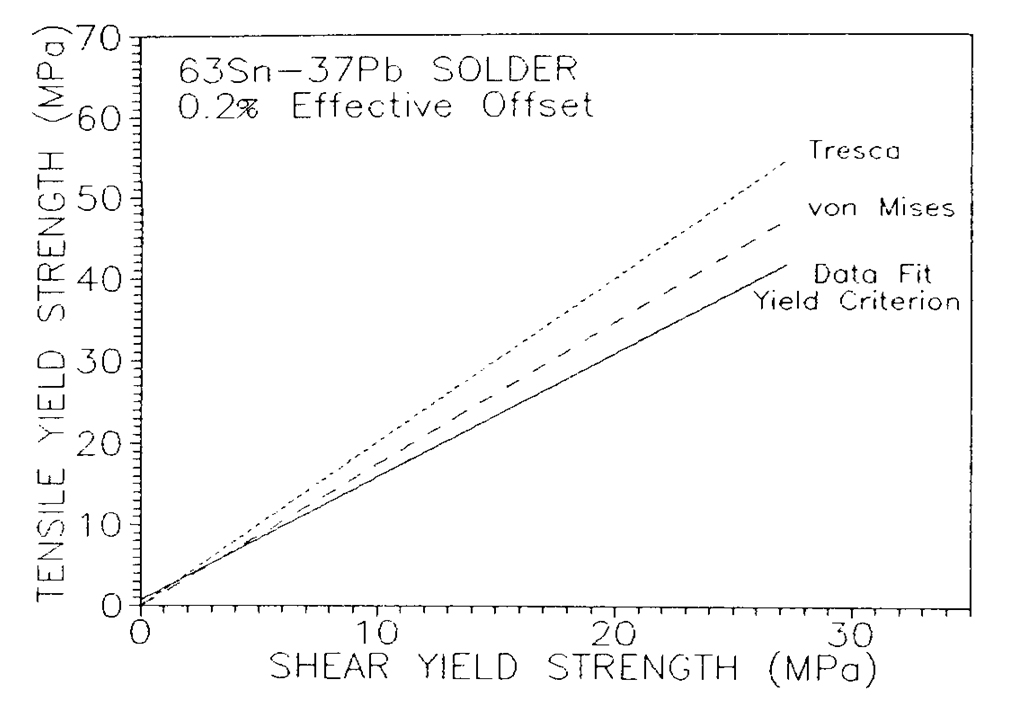

Comparison of test data fit to two theoretical models of multiaxial yielding criteria.
Explanatory text for above information including references and figures.
Phase Equilibria in the Lead and Tin System
Lead and Tin binary phase diagram
